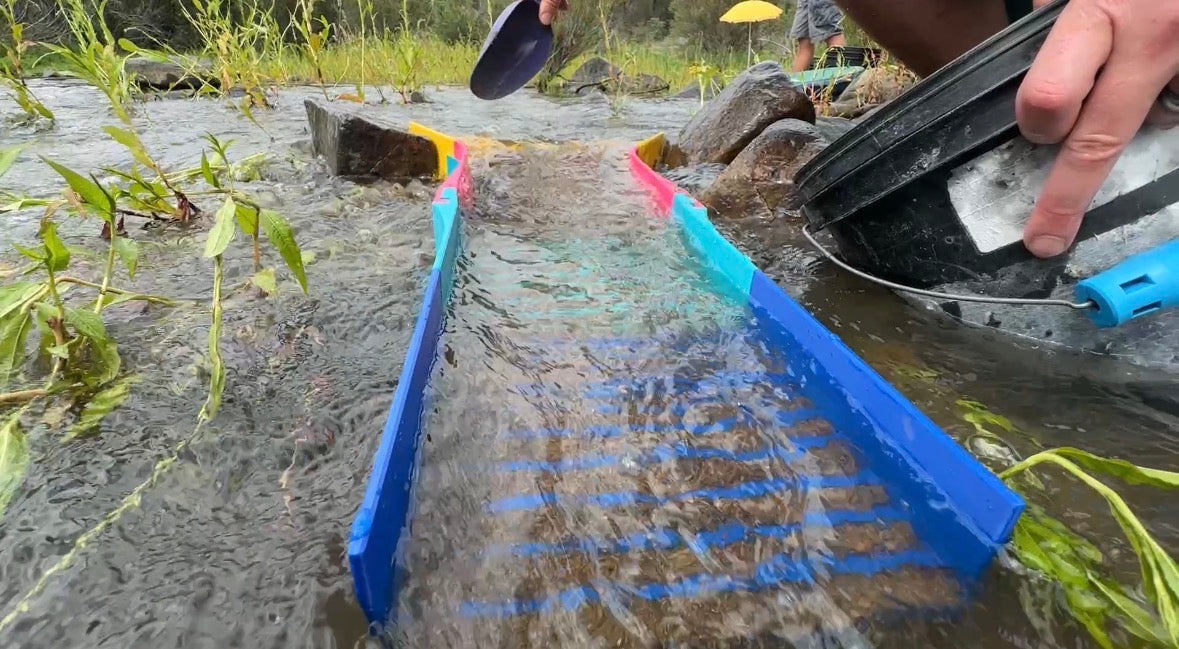

The Ultimate Guide to Setting Up Your Sluice Box: Physics, Flow, and Fine-Tuning
Gold prospecting is as much an art as it is a science. While anyone can throw a shovel of dirt into a creek, the difference between taking home a heavy vial of "yeller" and going home with empty pockets often comes down to one critical factor: your sluice box setup.
At chrisundertaking, we live for the hunt. We’ve spent years refining our techniques in the field, moving hundreds of buckets of material to understand exactly how gold behaves under different conditions. Whether you are a weekend warrior or a dedicated prospector, mastering the geometry and fluid dynamics of your sluice is the single best way to increase your recovery rate.
1. Understanding the Foundation: The 1-Inch Rule
The most common question in prospecting is, "What angle should my sluice be at?" If you look at the physics of gravity-fed recovery, the standard starting point for a gold sluice box is generally between 5 to 7 degrees of slope.
For those without a protractor in their backpack, we use a more practical field measurement: the 1-inch drop per foot. If you have a standard 32-inch sluice, you are looking for roughly a 2.5 to 3-inch total drop from the head (the flare) to the tail. This angle creates the necessary velocity for the water to stay "active." If the angle is too flat, your riffles will pack with heavy black sands, "blanketing" the sluice and allowing gold to slide right over the top. If the angle is too steep, the water velocity becomes a torrent, washing out the fine gold you worked so hard to find.
2. Material is King: Adjusting for Your Dirt
While 5 to 7 degrees is the "textbook" answer, the "real-world" answer is dictated by your material. No two creek beds are the same, and your setup must adapt to what you are digging.
- Pre-Classified Material: If you are screening your dirt down to 1/4 or 1/8 inch before it hits the sluice, you can often run a shallower angle with less water. Since there are no large rocks to "clear," the water doesn't need as much force.
- Unclassified/Raw Dirt: If you’re shoveling straight from the hole into the flare, you need a steeper angle and more "hungry" water. The water must have enough energy to lift and tumble large cobbles out of the box instantly.
- Clay-Heavy Material: Clay is the enemy of gold recovery. It can ball up and steal gold, or create a thick slurry that makes the water too dense for fine gold to sink. If you’re in clay-rich ground, you may need a steeper pitch and higher water volume to break those bonds.
The Goal: You want to see the material in your riffles "dancing." The black sands should be shifting and rolling, not sitting stagnant. This is called a "fluidized bed."
3. Sizing Your Sluice for the Mission
Size matters, but bigger isn't always better. Your sluice needs to be sized based on two things: your material volume and your available water.
The Standard "Workhorse"
For most creek and river conditions, the industry standard is a width of 6 to 8 inches with a length of approximately 32 inches. This footprint is the "Goldilocks" zone for prospecting—it’s light enough to carry into remote canyons but large enough to handle a steady feed of material.
The "Full Bucket" Mentality
If your goal is high-volume production—what we call the "100-bucket challenge"—you need a wider box. A wider sluice spreads the water out, creating a thinner, more consistent "sheet" of flow. This allows you to dump full buckets of material without overwhelming the riffles. However, a wider box requires significantly more water to stay functional.
4. The Seasonal Shift: Weather and Water Flow
One of the most overlooked aspects of sluice setup is the environment. The creek you prospected in July will not be the same creek in January.
- Summer Conditions (Low Flow): In the heat of the summer, many creeks slow to a trickle. A large, wide sluice will fail here because you won't have enough water depth to cover the riffles. During these months, you should transition to a smaller, narrower sluice. By narrowing the channel, you force the limited water into a faster, deeper flow, maintaining the ability to clear rocks.
- Winter/Spring Conditions (High Flow): When the rains come and the river is "raging," a small sluice will be drowned. The turbulence will be too high, and your gold will be lost to the current. This is when you bring out the bigger, heavy-duty sluice capable of handling the massive energy of a full river.
5. Proper Placement in the Stream
Setting the angle is only half the battle; you also have to find the right "V" in the water.
- Seek Laminar Flow: Look for water that is moving smoothly. Avoid placing your sluice directly behind a large boulder where the water is "boiling" or swirling (turbulent flow), as this will cause inconsistent recovery.
- The Rock Foundation: Never just set your sluice on the sand. Dig a small trench or build a foundation of heavy rocks to wedging the sluice into place. If the box wobbles while you are shoveling, you are losing gold.
- The Flare Feed: Ensure the water entering the "flare" (the wide opening) is centered. If the water enters at an angle, it will create a "dead zone" on one side of the riffles and a "high-velocity zone" on the other.
6. Innovation at Chrisundertaking
Here at chrisundertaking, we aren't just talkers; we are builders. We’ve spent countless hours at the CAD station and the 3D printer, prototyping designs that address the common failures of traditional sluices.
We know the frustrations of "rock jams" and "riffle packing." That’s why we are currently designing and manufacturing our own proprietary sluices. We are focusing on optimized fluid dynamics, lightweight durability, and a "family-friendly" ease of use that ensures even the kids can help clear the box.
Our goal is to take the guesswork out of the 5 to 7-degree rule. We are engineering tools that make it easier to find the "sweet spot" in the flow, so you can spend less time adjusting rocks and more time uncovering the treasures hidden in the creek bed.
Keep an eye on chrisundertaking.com! We are in the final stages of testing, and soon we will have a sluice ready for you to buy. We want to put the same equipment we use in our videos directly into your hands.
Summary Checklist for Your Next Trip:
- [ ] Check the Pitch: Aim for a 1-inch drop per foot.
- [ ] Watch the Riffles: Is the black sand "dancing"?
- [ ] Classify: If the flow is low, screen your dirt smaller.
- [ ] Stability: Ensure the box is rock-solid and won't shift under the weight of a shovel.
- [ ] Stay Adaptive: If the sun starts baking the creek dry, be ready to downsize your gear.
Gold is out there, waiting in the cracks and crevices of the bedrock. Setting up your sluice correctly is the bridge between a "nice walk in the woods" and a "life-changing find." We'll see you on the river!
