In the world of gold prospecting, we are often tied to the "old ways." Heavy steel sluice boxes, traditional miners' moss, and back-breaking equipment have been the standard for decades. But at ChrisUndertaking, we are always looking for the next leap in recovery technology.

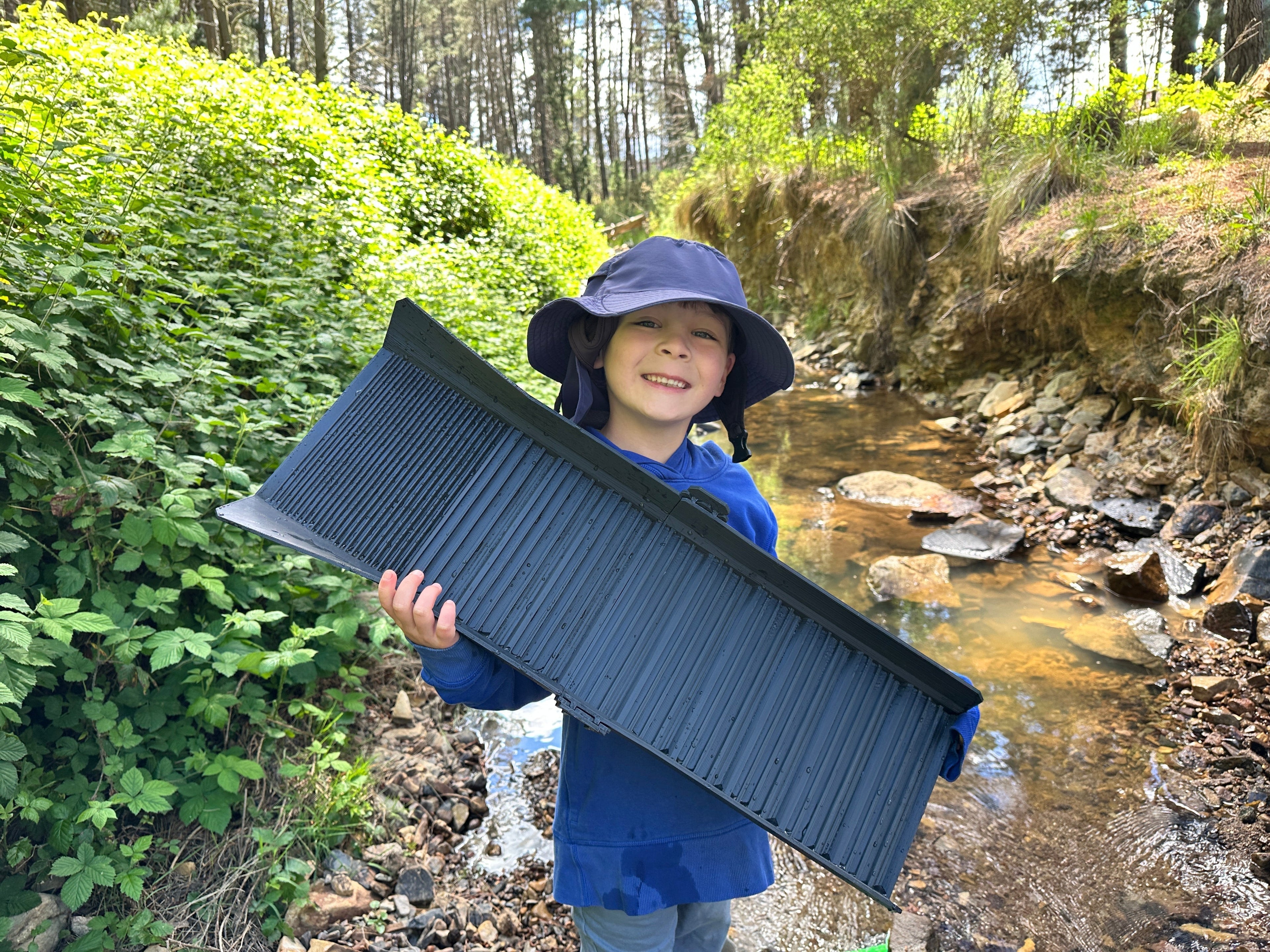

Today, we took a journey into the heart of the Sunny Corner goldfields in New South Wales to test something radical: a 3D-printed sluice prototype. The goal was simple—create a lightweight, high-efficiency recovery system that a family could carry into the bush without breaking their backs.
But as any inventor will tell you, the gap between a digital design and a rushing mountain stream is wide. Here is the breakdown of our field test, the engineering hurdles we faced, and the golden truth about prototype testing.
The Vision: Why 3D Printing?
Traditional sluices are bulky. When you’re trekking through rugged NSW terrain with kids in tow, every kilogram or pound matters. The prototype we brought to Sunny Corner was designed to be modular and incredibly light. By using 3D printing, we can experiment with complex riffle geometries that are nearly impossible to manufacture with traditional folding or casting.
We wanted a "drop-in" riffle system that could capture everything from heavy nuggets to that elusive microfine gold Sunny Corner is known for. With the red, white, and blue spirit fueling the build, we hit the creek with high hopes.
Field Setup at Sunny Corner
Sunny Corner is a legendary location, but it isn't forgiving. The water flow here can be inconsistent, and the gravels are packed with heavy ironstones and "trash" rocks that can easily clog a poorly designed system.
Setting up the prototype required a perfect balance of three factors:
- Pitch (The Angle): If the sluice is too flat, it loads up with sand and "blinds" the riffles. If it’s too steep, the gold blows right out the back.
- Flow (Water Volume): We needed enough "purr" to keep the rocks moving but not so much that it created turbulence over the gold traps.
- Stability: Because 3D-printed plastic is much lighter than aluminum, securing the box against the current was our first major hurdle.
The Test: Shoveling into the Unknown
We started by feeding the prototype classified material. The riffle design was intended to create "vortex" zones—tiny whirlpools behind each riffle that drop the heavy gold while spinning out the lighter quartz.
At first, it looked like a dream. The black sands began to settle exactly where they should. We could see the heavy material dancing in the traps. My son Finn and I were feeling the "gold fever" rising as we processed bucket after bucket.
The Turning Point: The Failure
In prospecting, "failure" is just another word for "data." As we increased the feed rate, we noticed a critical flaw in the prototype's structural integrity. The sluice flare wasn't wide enough, capturing the flow of the creek.
Instead of the gold being forced into the traps, the water began to "flat-line" over the top. We were still catching gold, but the material was clogging the riffles. This is the heart of prototype testing—you don't know where the breaking point is until you hit it.
The Recovery: What Did It Catch?
Despite the structural "failure" of the flare, we decided to do a cleanup to see if the riffle geometry itself actually worked. This is the moment of truth for any gear designer.
We washed the 3D-printed mats into a clean pan. The result? Success in the traps. Even with the bypass issues, the specific vortex-style riffles had successfully grabbed fine Sunny Corner gold. We found beautiful, bright specks and small flakes that proved the recovery theory was sound—even if the flare of the sluice needed a trip back to the drawing board.
Lessons Learned for Version 2.0
This trip to Sunny Corner provided three vital lessons for the next iteration of the ChrisUndertaking prototype:
- Flare is King: Plastic is great for weight, but we need to reinforce the sidewalls. The flare needs to be aggressive, pulling the water down the riffles.
- The "Vortex" Works: The 3D-printed riffle shape outperformed traditional riffles in capturing micro-fines. We will be doubling down on this geometry.
Final Thoughts: The Prospector’s Mindset
If we only filmed the days where everything went perfectly, we wouldn’t be teaching you the reality of the bush. Gold prospecting is an evolving science. Using 3D printing to disrupt traditional mining methods is a messy, wet, and sometimes frustrating process—but it’s how we move the hobby forward.
Sunny Corner didn't give us a "retirement nugget" today, but it gave us the blueprints for a better machine. We found gold, we found flaws, and we found a reason to come back even stronger.
Top 5 Lessons from the Prototype Test
- Don't Fear Failure: A failed prototype is just a guide on how to build a better one. If you aren't breaking gear, you aren't pushing the limits.
- Monitor Your "Tailings": Always check the water exiting your sluice. If you see black sand or gold escaping, stop and adjust your pitch immediately.
- Weight Matters: Lightweight gear is a blessing for the hike in, but make sure you have enough rocks on hand to anchor your sluice in high flow.
- Geometry Over Mass: This test proved that the shape of the riffle is more important than the depth. Science-backed 3D designs can catch gold that traditional riffles miss.
- Family Involvement: The best part of the prototype test was having the kids help identify the leaks. It’s a masterclass in problem-solving and engineering for the next generation of prospectors.
